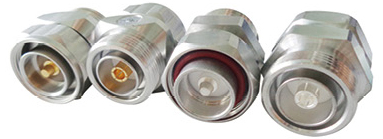

PIM Standard Kit
PIMTEK offers PIM Standard Kit for PIM testing with IM3 benchmark level -80/-100/-110/-125dBm, with Carrier Power 2x20W.Kit can not be applied to the calibration of PIM Analyzers,but it can be applied to judge the test accurency of PIM Analyzers.
PRODUCT FEATURES
Passive Intermodulation Testing Source
Applied to verify PIM Analyzers's good or bad
High Repeatability
Anti-wear,Antioxidan
TECHNICAL SPECIFICATION
System
| Connector Type | DIN（Male）-DIN（Female） |
| Mechanical Endurance | ≥1000 times |
| Impedance Characterstics | 50 Ohm |
| IM3 Output | Power Level: -80dBm/-100dBm/-110dBm/-125dBm±3dB |
| Frequency：913MHz/1775MHz | |
| Carrier: 2×+43dBm/2×20W | |
| 2002/95/EC(RoHS) | Capatible |
| Inner conductor | Beryllium bronze |
| Outer conductor | Yellow Copper |
| Shell | Yellow Copper |
| Connecting screw sleeve | Yellow Copper |
Mechnical
| Weight | 0.160Kg |
Environmental
| Operating Temperature Range | -55℃ to +85℃ |
*Optional Manufacture:⑴ Rosenberger ⑵ HUBER+SUHNER
