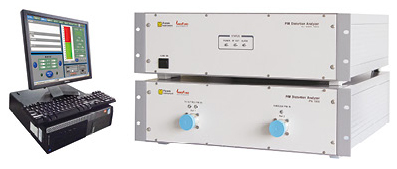

4G LTE Series PIM Analyzers
4G LTE Series PIM Analyzers is appropriate for 4G LTE communication frequency band.It is used for measuring PIM on broadband passive components (such as base station antenna ,RF connector ,cavity filter, arrester,jump cable,low PIM termination,ect).A multi band PIM analyzer can be configurated by stacking several single band analyzers.It has two measurement models---"Production Mode" and "Engineering Mode " which makes more convenient and accurate observation and analysis of the results of measurement.
PRODUCT FEATURES
Fully configurable frequencies, power and IM products
High integration density,no need to build complicated platform
Simple to operate,user-friendly, bilingual (English/Chinese)
Reflect (standard) and Transmit(option)
Bar code scanning (option)
All frequency bands of 4G LTE are covered in PIM testing
Analyzed results can be exported in format of Microsoft Word/Excel/PDF.
Three methods of measurement:dot frequency,sweep frequency,time domain
Technical Specifications
System
| Measurement Method | Reverse (Reflected) PIM / Transmitted PIM |
| Reflected Residual PIM | < -165dBc@2×+43dBm |
| Transmitted Residual PIM | < -163dBc@2×+43dBm |
| Test Port | 2×7-16 DIN Female |
| User Interface | 4×USB ,1×LAN |
| Display | Local - 18 inch touch screen display |
| Intermodulation order | IM3 / IM5 / IM7 / IM9 |
Transmitter
| Frequency Increment | 200kHz/500kHz/1MHz/2MHz/5MHz |
| Frequency Accuracy | ±3ppm |
| Power per tone (adjustable) | 2×1 to 25W (+30 to +44dBm in 1dB increments) |
| Power Accuracy | ±0.5dBm |
| Reverse Power Protection | 100W |
Receiver
| Measurement Noise Floor | <-138dBm |
| Measurement Range | -55dBm to -138dBm |
| Receive Accuracy | ≤±0.5@-100dBm |
Electrical
| Power Source | AC 175-250V,50Hz |
| Power | 450W |
| Warm Up Time | 3 Minutes |
Mechnical
| Dimensions/Weight | 485×149×520mm (W×H×D)×2 /approx 30kg |
Environmental
| Operating Temperature Range | -5 ℃ to +35℃ |
| Protection Grade | Indoor Use |
| Relative Humidity | 5% to 90% RH no-condensing |
Models
| DESCRPTION | Transmit Frequency band | Receive Frequency band |
| PIM700S-L LTE | 728-746MHz | 697-720MHz |
| PIM700S-H LTE | 746-768MHz | 777-798MHz |
| PIM1900S-F F frequency band | 1880-1900MHz | 1915-1920MHz |
| PIM2100S-A A frequency band | 2017.5-2025MHz | 2010MHz |
| PIM2600S-D D frequency band | 2627.5-2635 MHz | 2620 MHz |
*Customized
